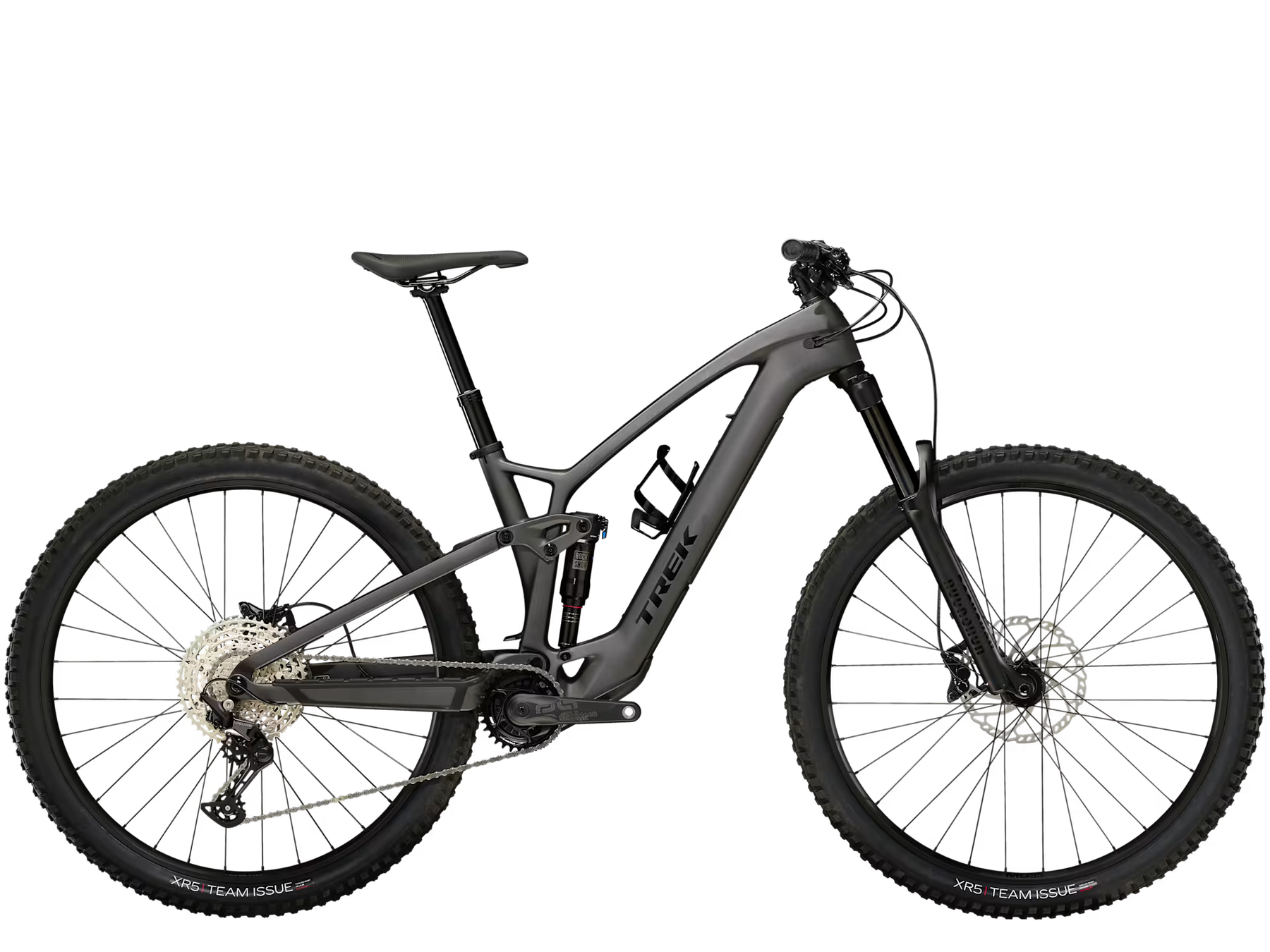

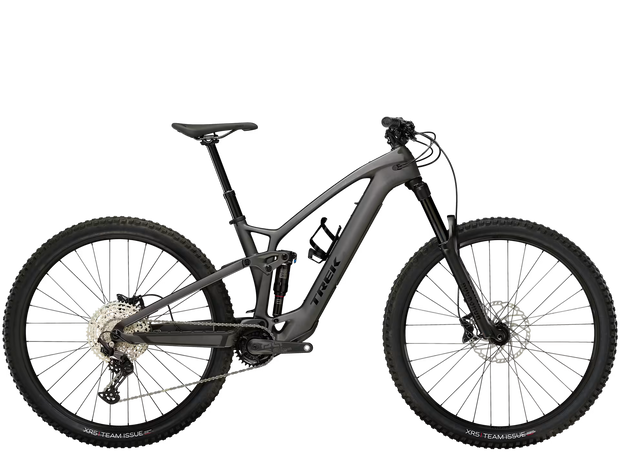

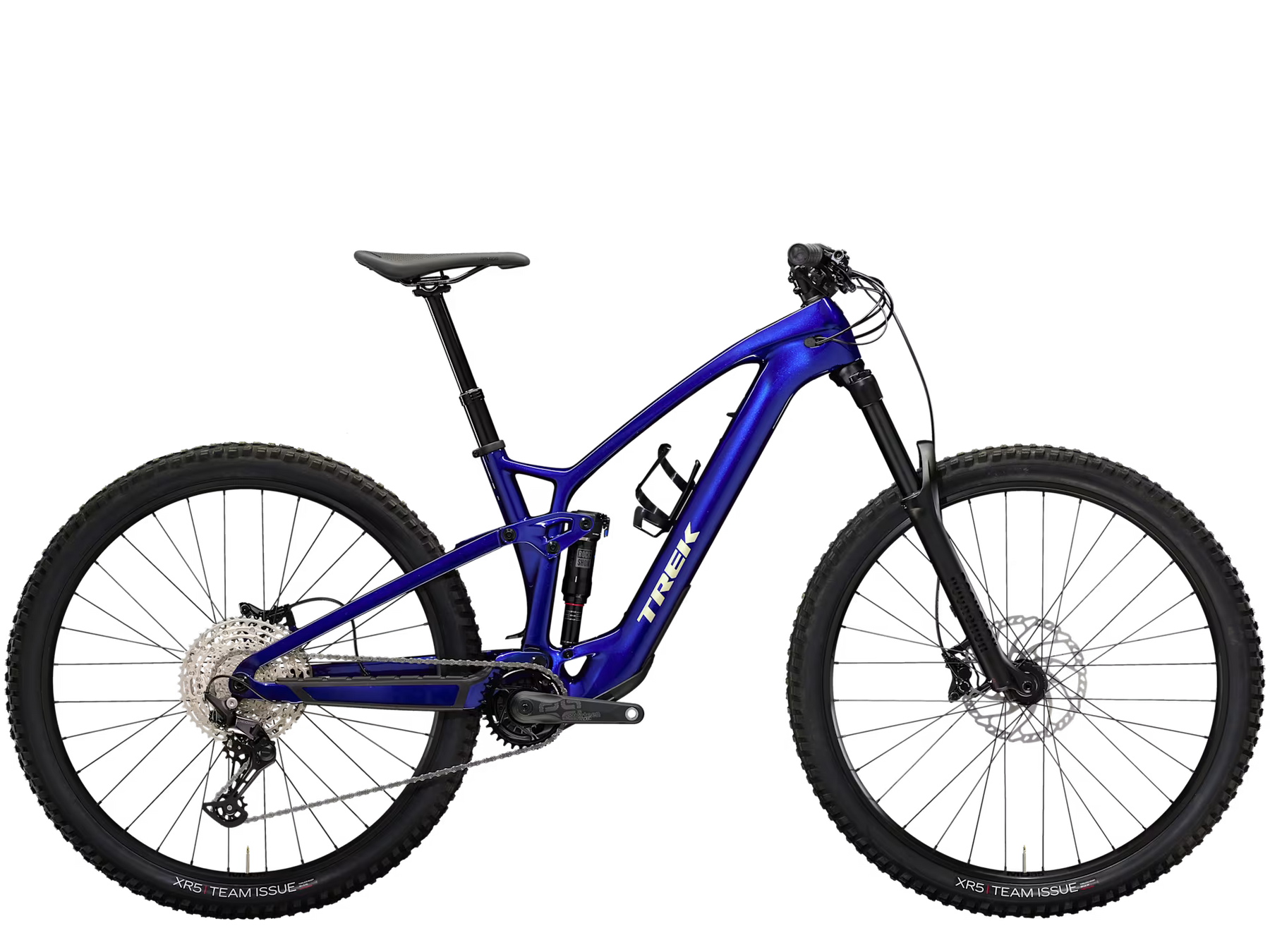

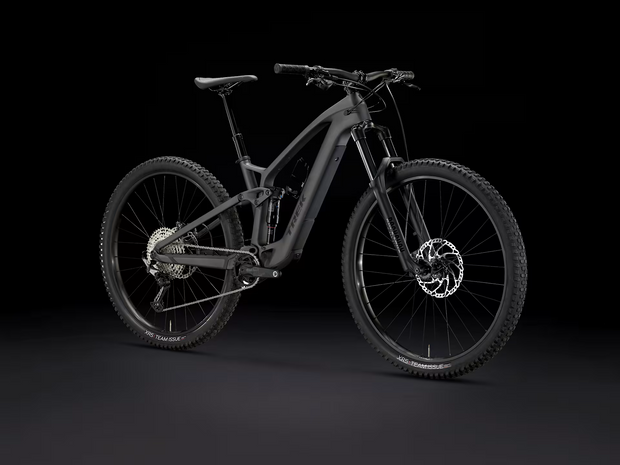

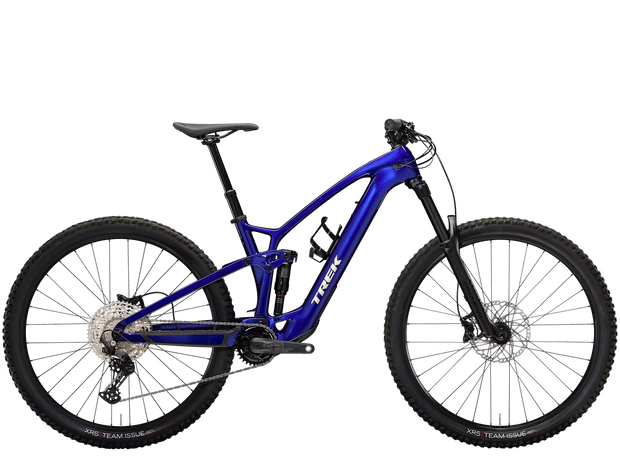

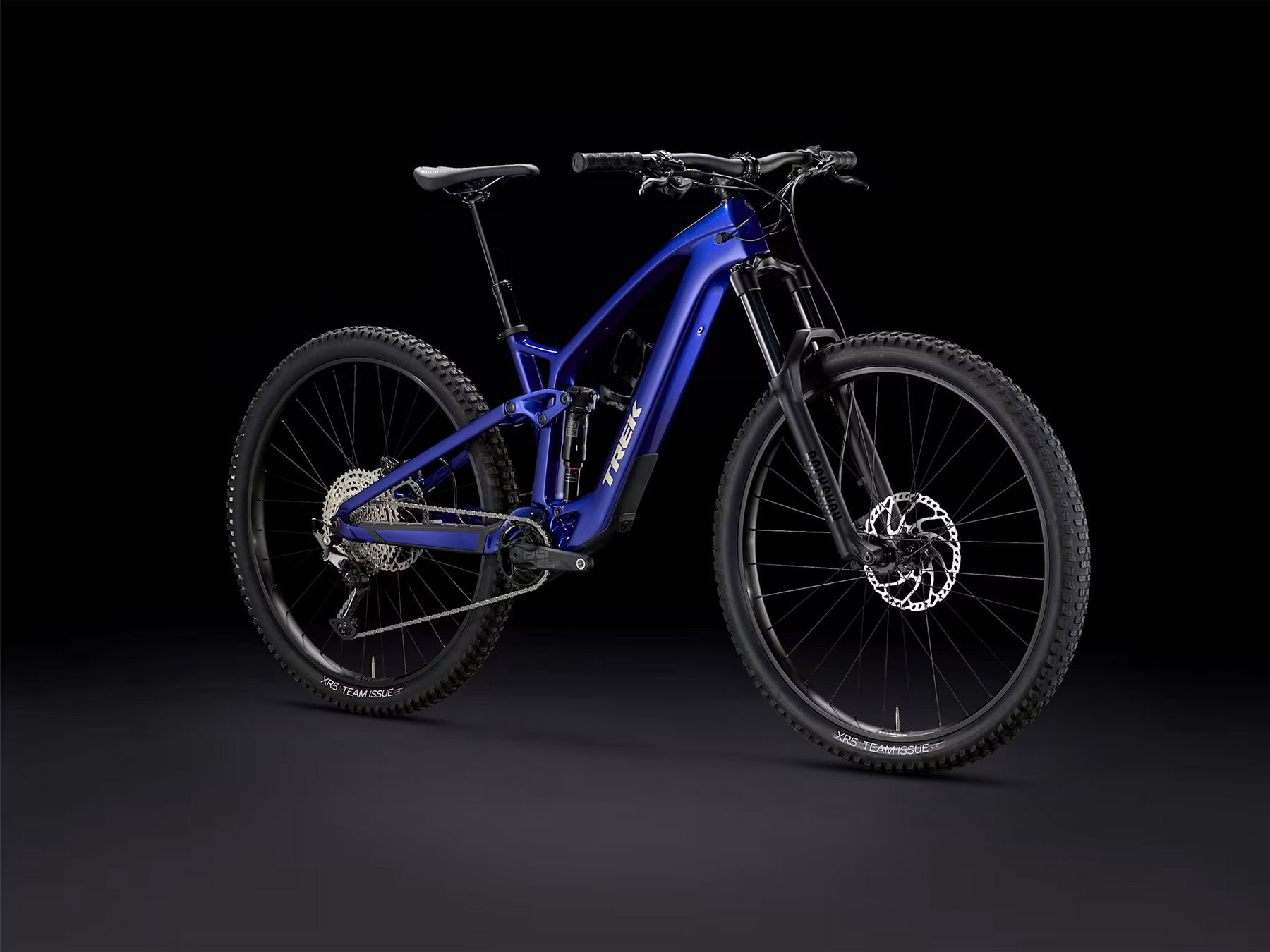

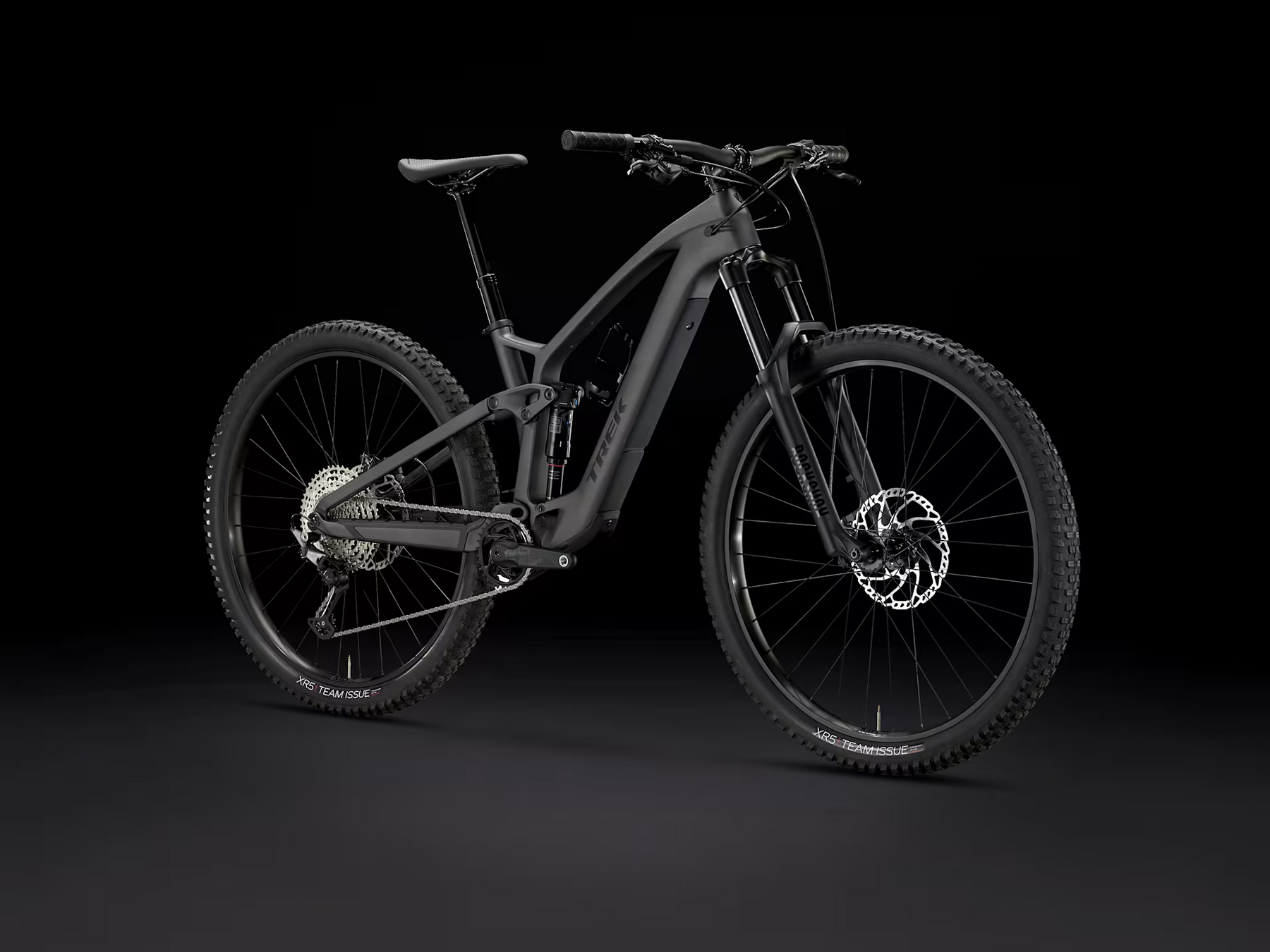

Trek Fuel EXe 9.5 E-Bike
Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150mm RockShox Gold RL fork that makes quick work of rock gardens, and 140mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.

Frameset
Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Shock RockShox Deluxe Select+ RT, 205mm x 60mm

Wheels
Hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Rim Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Tire Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
Tire part Bontrager TLR sealant, 6oz

Drivetrain
Shifter Shimano Deore M6100, 12 speed
Rear derailleur Shimano Deore M6100, long cage
Crank E*thirteen E*spec Plus, 165mm length
Chainring E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Max chainring size Max: 34T Min: 30T

Components
Saddle Bontrager Arvada, steel rails, 138mm width
*Seatpost Size: S
TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
Size: M
TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
Size: L, XL
TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor Shimano RT66, 6-bolt, 203mm

Accessories
Battery TQ 360Wh

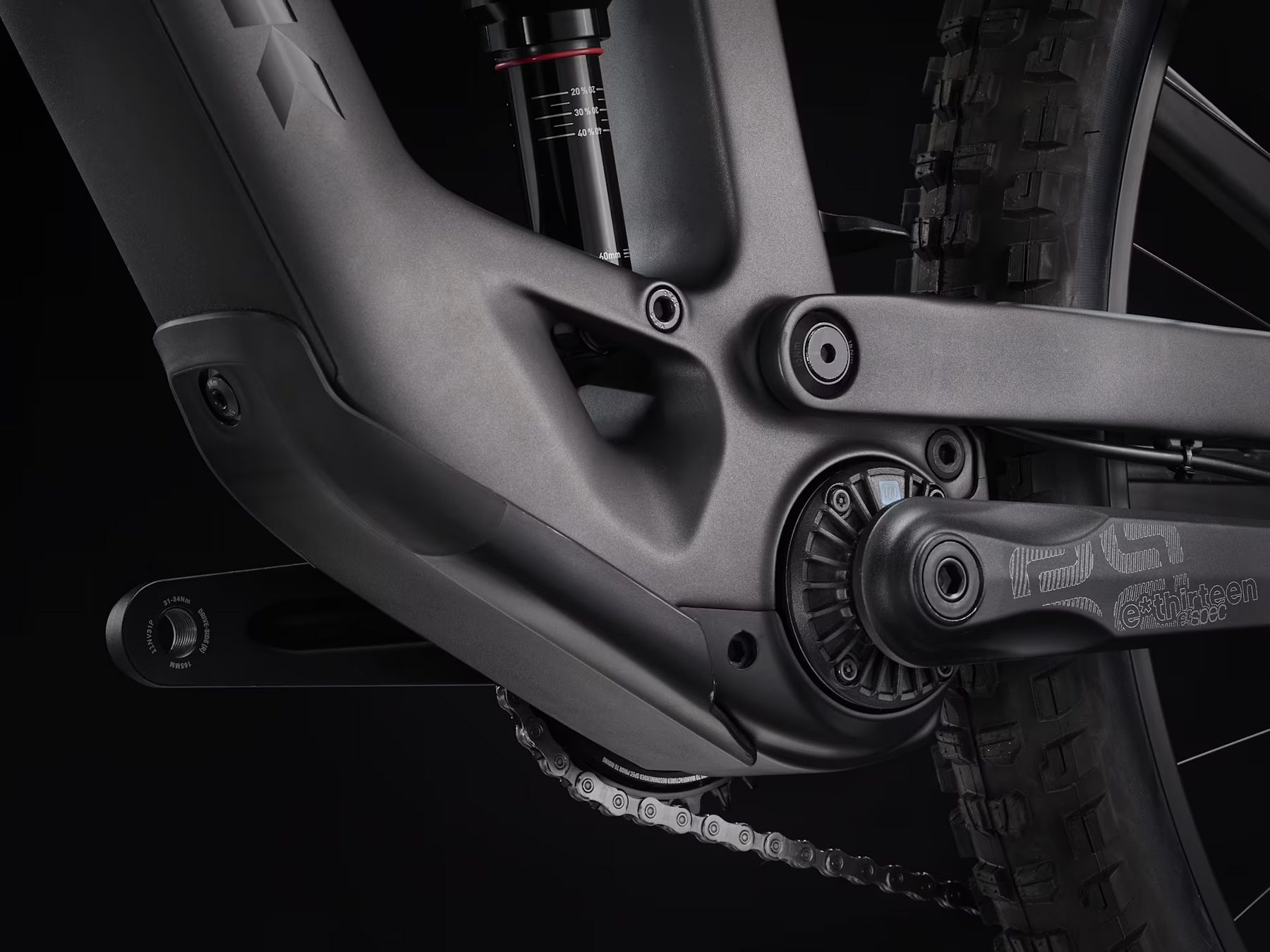

Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

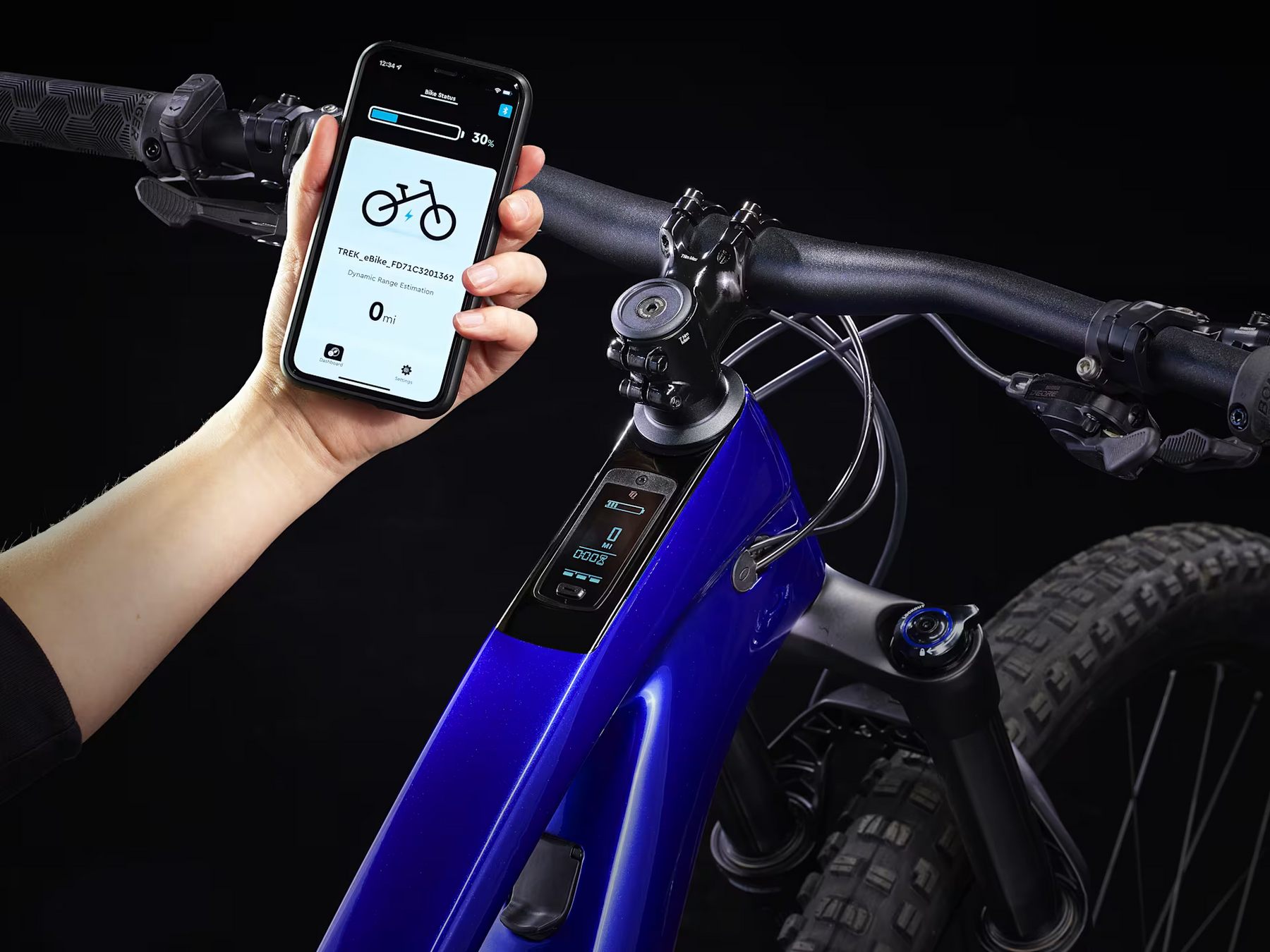

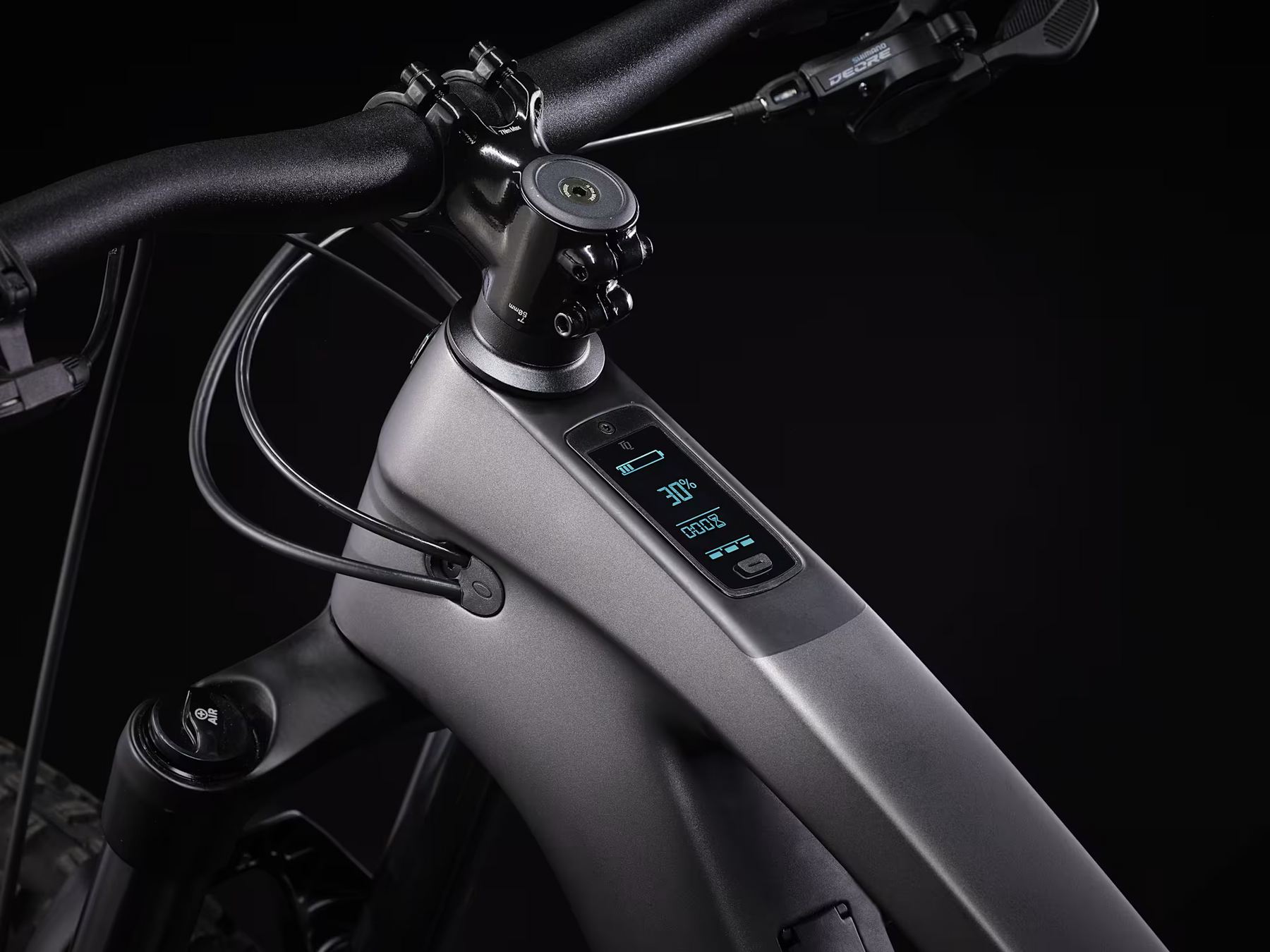

Computer TQ LED display with Bluetooth & ANT+ connectivity
Electronics TQ 4A charger

Weight
Weight M - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

TREK

Trek Fuel EXe 9.5 E-Bike

Name: Trek Fuel EXe 9.5 E-Bike
Brand: TREK
SKU: 036362
Price: 6499.95 USD
Availability: OutOfStock

$6,499.95

No reviews

Color — MATTE DNISTER BLACK

MATTE DNISTER BLACK

HEX BLUE

Size

M

L

S
